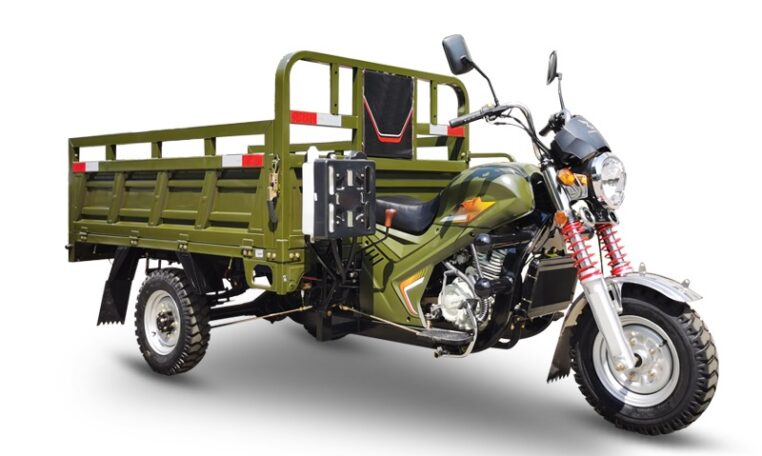

Zongshen 200CC -Q7A Water Cooled
Show All Photos
| Overall Size | 3500*1380*1490mm |
| Cargo Box Size | 2000*1350*420mm |
| Cargo Box Type | height 420mm (excluding handrail)/thick riffled floor plate |
| Engine Type | Four stroke/water-cooling/Zongshen 200CC (auxiliary water tank) |
| Rated Power | 10.5kw （1±5%）@7500rpm（1±1.5%） |
| Max. torque | 15.5N.m（1±5%） @ 5500rpm（1±1.5%） |
| Cylinder Bore* Stroke | φ63.5*62 |
| Ignition Mode | DC CDI |
| Compression Ratio | 10: 1 |
| Transmission | 5 speed + 1 reverse gear |
| Transmitting Mode | Shaft transmitted |
| Gear Ratio | 37: 11 |
| Front Suspension | Duplex/φ50mm/hydraulic/shock absorber |
| Rear Suspension Type | Leaf spring dependent suspension |
| Rear Shock absorber | 7 pcs leaf spring |
| Rear Axle | Chang’an entire floating rear axles/mechanical reinforced/37:11/70*5/hard zipper |
| Min. Turning Radius | 3250mm |
| Min. Ground Clearance | 180mm |
| Leaf Spring | 7 pcs leaf spring/variable cross-section/ No.1-4: 63*8mm, No. 5-7: 63*12mm |
| Tyre (F/R) | 5.00-12/5.00-12 |
| Brake Type | Mechanical brake/mechanical brake |
| Brake Mode | Drum/drum |
| Max. Speed | 60km/h |
| Fuel Tank Capacity | 26L |
| Mileage Per Charge | 570km |
| Curb Weight | 395kg |
| Max. Load Weight | 1000kg |
| Features | 1. Large fuel tank ensures long endurance 2. 420mm cargo box with reinforceds, 2.0mm riffled floor plate is durable and not easily deformed 3. Auxiliary water tank for larger capacity of vehicle cooling water, super cooling effect to ensure the engine enduring operation 4. Chang’an entire floating rear axles with 70*5 axle tube has strong loading capacity and anti-deformation |
